Cette serie d'onduleur présente plusieurs caracteristiques que l'on retrouve usuellement dans des gammes séparées.

Ces modeles sont online double conversion, avec un facteur de puissance de 0.9, convertibles rack/tour, utilisent des packs batteries additionnels plug and play qui vous permettent de choisir facilement votre autonomie et offrent également des extensions réseau SNMP, AS400 ou encore BMS.

Comme les autre onduleurs, ils vous protegent des coupures de courant, surtensions, soustensions, foudre et distortions harmoniques diverses.

Caractéristiques clés

Design Convertible Rack/Tour
L’écran breveté Mimic LCD peut être tourné simplement en pressant le bouton de devant
Un affichage compréhensif donne un accès simple aux paramètres.
Smart SNMP fonctionne avec USB
Rendement jusqu’à 90%
Modules additionnels simples a installer
Support multifonction
Armoire de batteries (Optionnel)
Facile à entretenir
Batteries remplaçables à chaud
Vrai Online Double Conversion
Haut facteur de puissance à 0.9
Power Shedding : Prioritisez vos charges critiques
Estimation de temps restant affiché sur l'écran LCD
Soutien économique (ECO)
Mode de fonctionnement
Pack de batteries de remplacement
Chargeur optionnel puissant
Demarrage à froid
Arrêt d’urgence
Mode convertisseur de fréquence réglable
Charge critique de batterie de secours

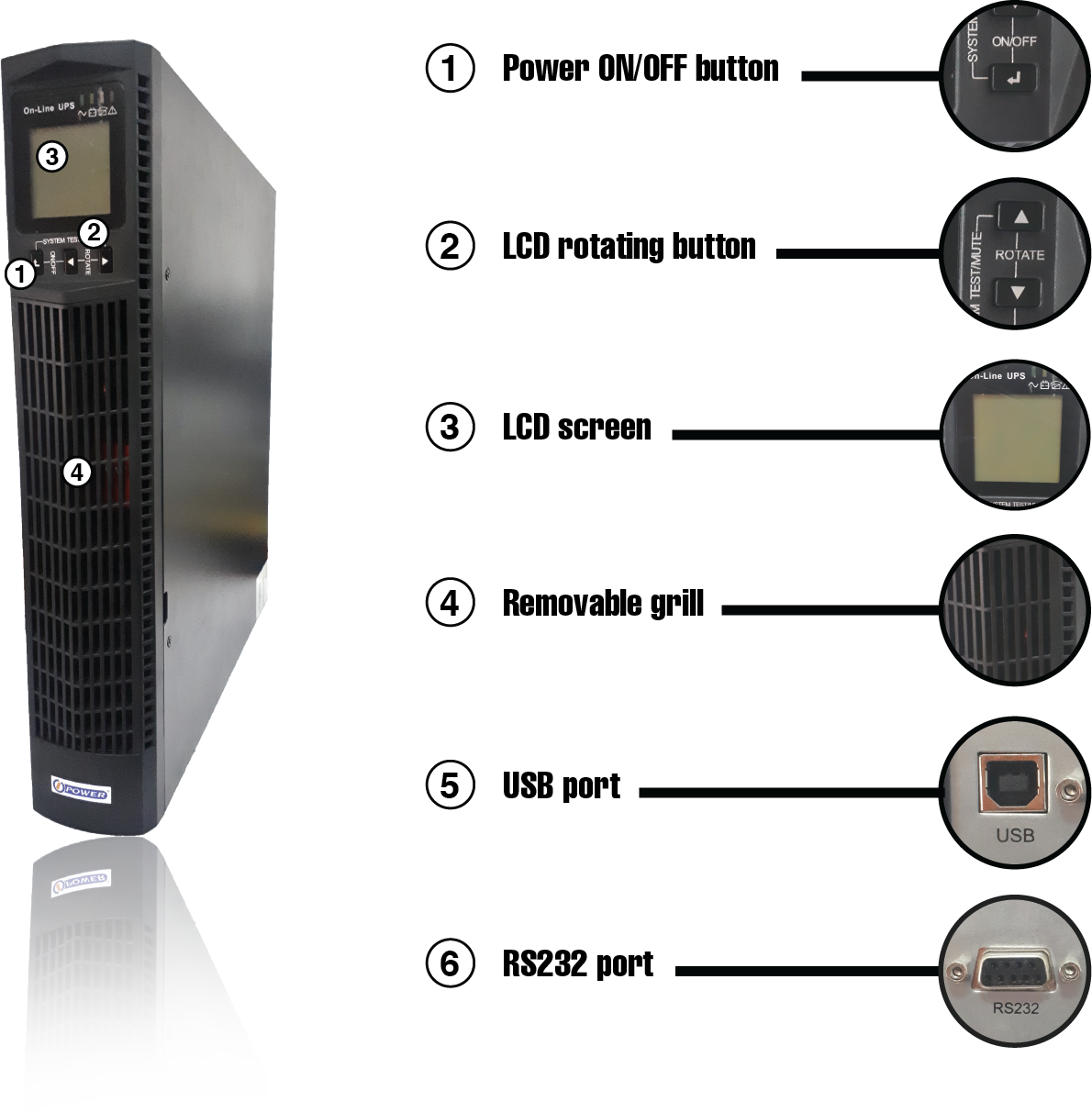

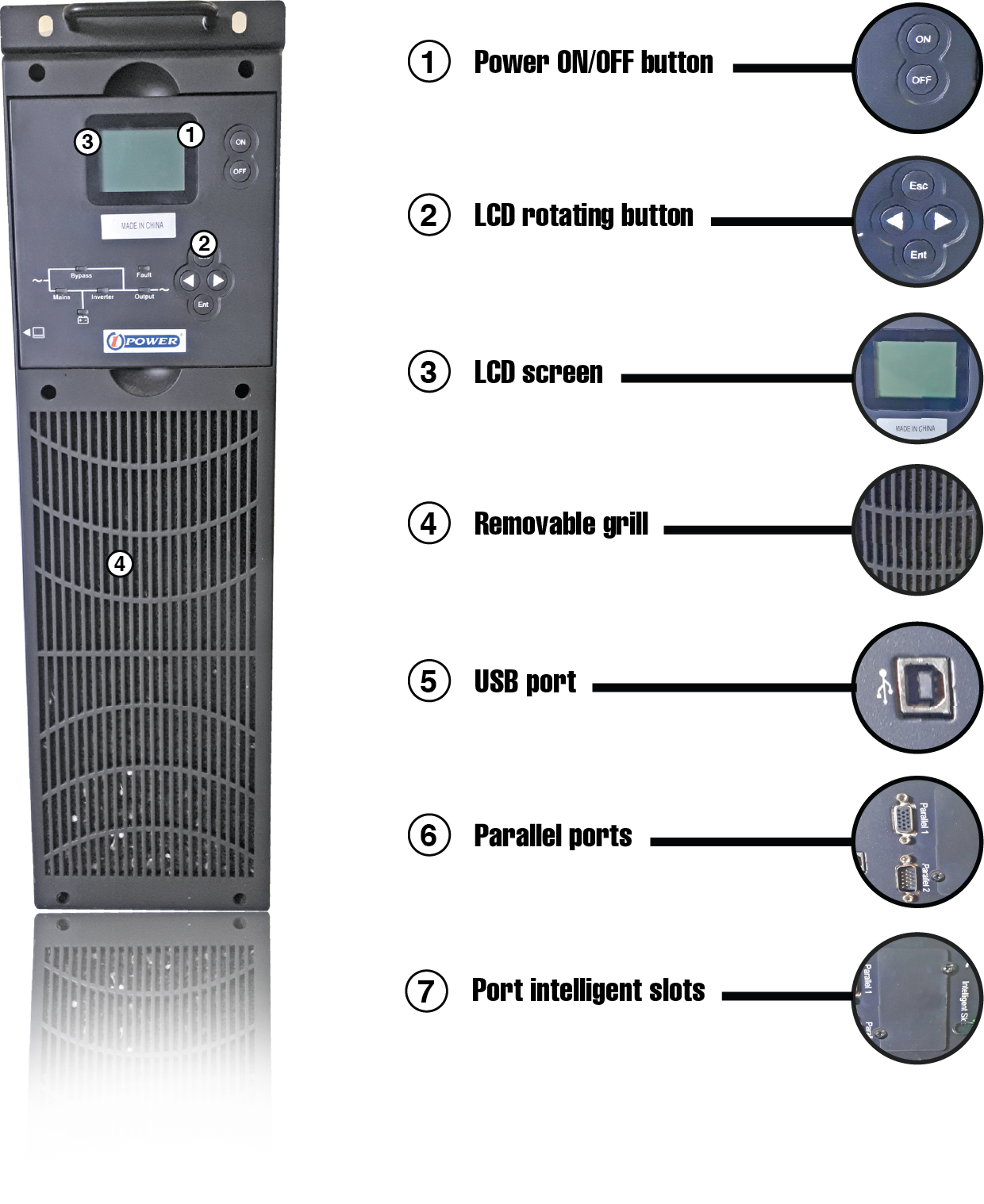

Rotating display screen

With LCD plus LED displays, the user may easily get UPS status and its operational parameters, such as input/output voltage, frequency & load%, battery % and ambient temperature, etc..

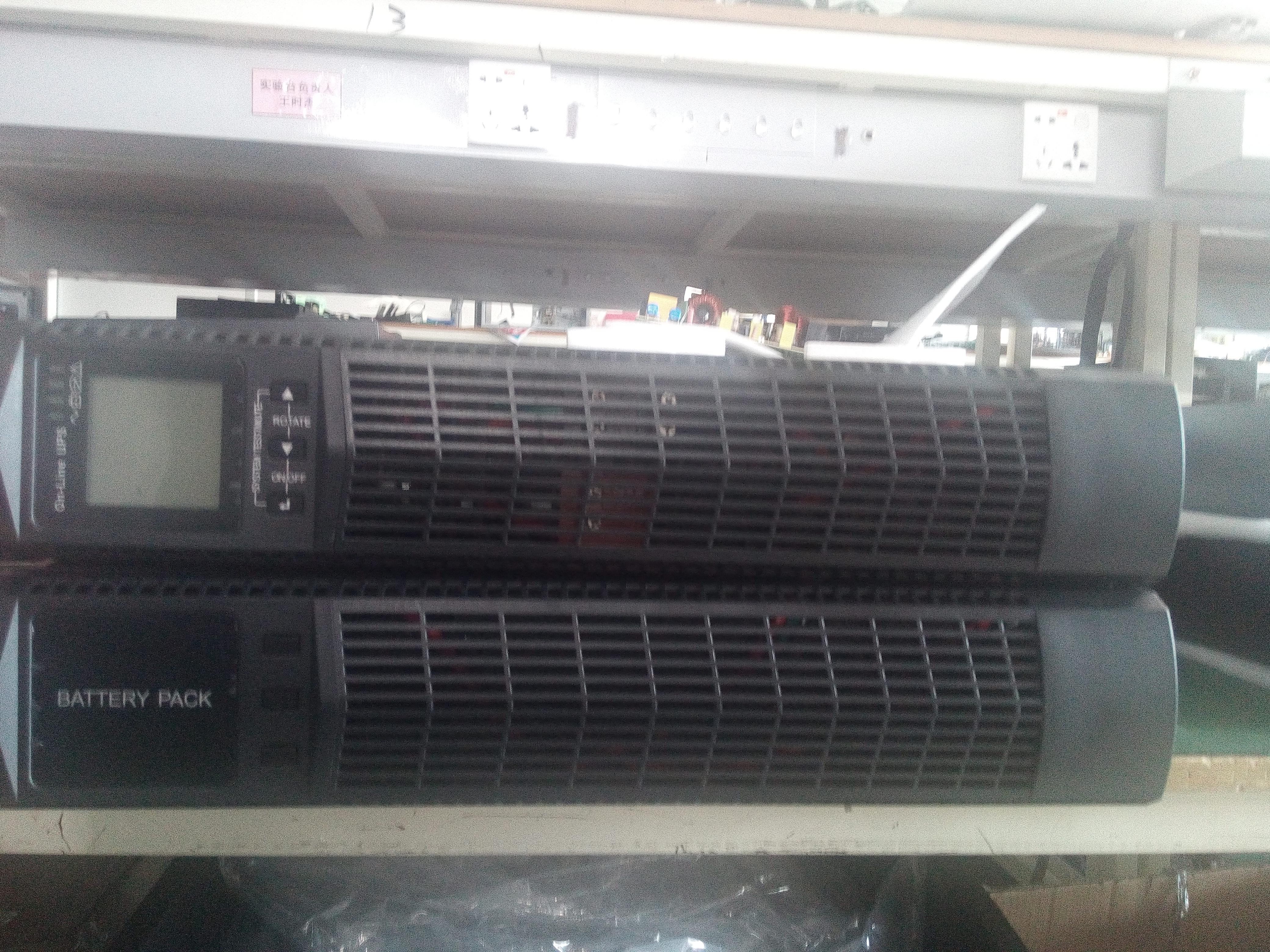

Additional batteries / batteries hot swap

Hot-Swap battery allows you change battery/ies in a UPS without shutting down the load. A maximum of four (4) battery cabinets can be added in the UPS (Plug and Play)Each External Battery Cabinet (EBC) include its own charger.

UPS monitoring and automatic shutdown software

The software is compatible with Novell Netware, Windows 2000/XP/Vista/7, Windows server 2003/2008/2012, Linux, FreeBSD and Mac. Support SEC Protocol & USB Interface.

Intelligent port slots

The use of the SNMP agent, BMS and AS 400 makes it easier in management features such as: • Setting up and programming extinctions etc.

Digital Control

This series UPS is controlled by Digital Signal Processor (DSP); hence, it increases reliability, performance, self proteciton, self-diagnostics and so on.

Rack and Tower

The machine can be installed in both horizontal (rack) and vertical (tower) position depending on the user. It is a 2-in-1 design for a simplified installation.

Intelligence charging method

The series UPS adopts three-stage charging method: advanced 1 st stage: 2 nd stage: 3 rd stage: High current constant current charging to guarantee to charge back to 90%. Constant Voltage in order to vitalize battery and make sure batteries are fully charged. This series UPS is controlled by Digital Signal Processor (DSP); hence, it increases reliability, performance, self proteciton, self-diagnos

1 phase in / 1 phase out

It is 1-Phase In/ 1Phase Out high-density UPS system, of which input current is kept in balance. No unbalance problem might occur.

Rails (options)

4-Post Rack-Mount Installation of Mistrals • Supports UPS systems in 4-post rackmount applications • Temporary placement pegs smplifies single-person installation

Emergency power off (EPO)

The Emergency Power Off (EPO) button, also called an EPO switch or EPO panel, is a safety measure for quickly disconnecting electrical power to a particular piece of equipment, or to an entire facility, in the event of an emergency

Aucun document disponible

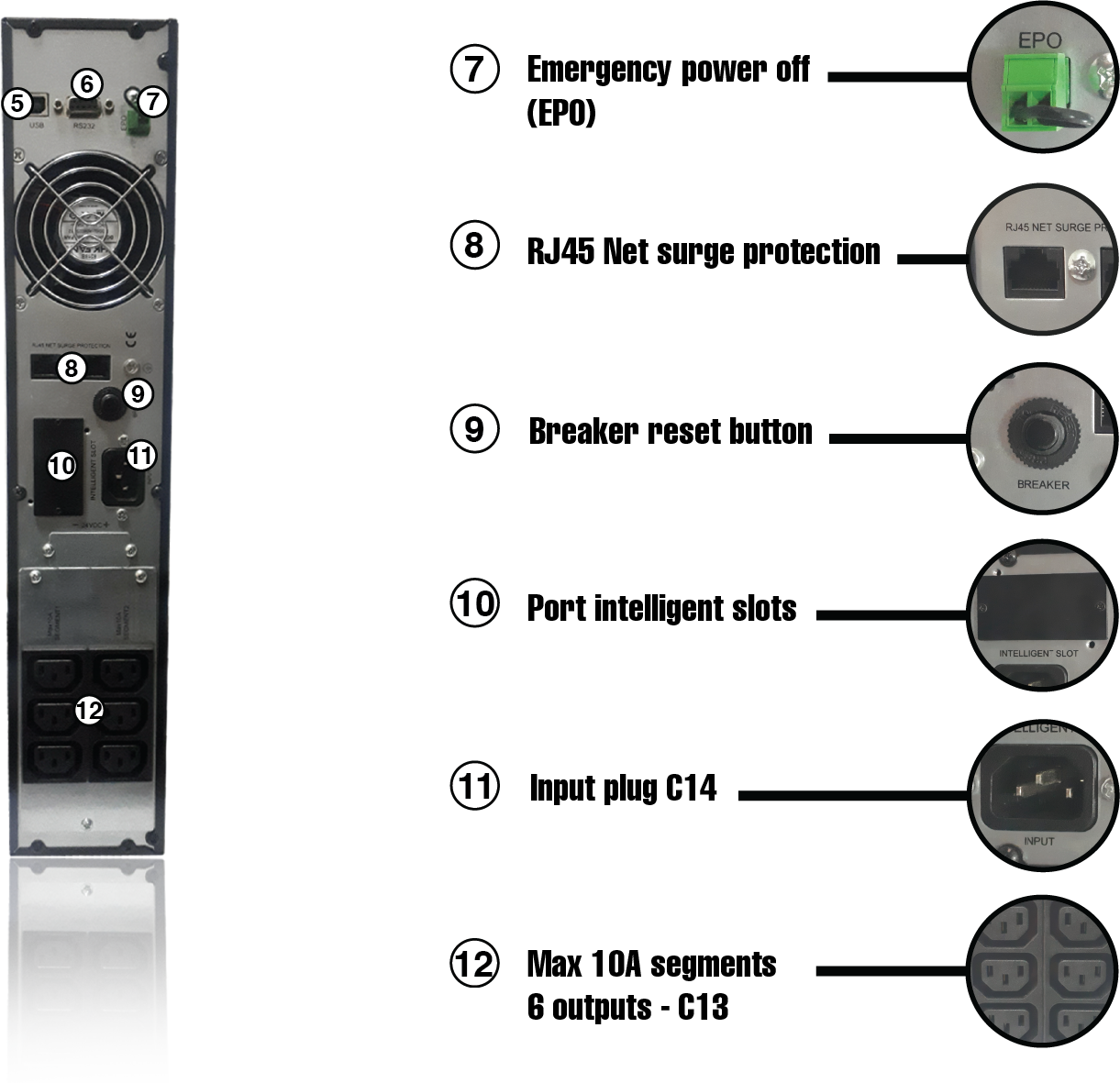

POOIP1501

Mistral 1KVA

Type 1(Capacity) : 1 KVA
Type 2(Power rating) : 900 W
Type 3(Nominal input) : 200/ 208/ 220/ 230/ 240 Vac
Type 4(Voltage) : 110~290 Vac
Type 5(Frequency) : 45~65 (Auto detect) Hz
Type 6(Input power factor) : ≥ 0.98
Type 7(Nominal output Voltage) : 200/ 208/ 220/ 230/ 240 Vac
Type 8(Output power factor) : 0.9
Type 9(Output voltage regulation) : ±2 %
Type 10(Crest factor) : 3:1
Type 11(Total Harmonic Distortion (THD)) : ≤3 (Linear mode) %
Type 12(Total Harmonic Distortion (THD)) : ≤3 (Battery mode) %
Type 13(Numer of batteries) : 2 Pcs
Type 14(Type of batteries) : 12/ 9 V/ Ah
Type 15(Dimension (LxHxP)) : 440 x 86.5 x 430 mm
Type 16(Humidity) : 0~90 %
Type 17(Operating temperature) : 0~40 °C
Type 18(Communication interface) : RS232/ USB Port/ RJ 245/ SNMP card
Type 19(Output) : IEC 320 C13-10A x 6
Type 20(Dimensions) : 440 X 86.5 X 430 (W X H X D) mm

1 pcs/ctn - 16,00 kg

SOCIP0701

Cabine batteries additionnnelle pour Mistral 1 KVA contenant 4 batteries 12V9Ah

Dimensions(LxHxP) : 440x86.5x430 mm
Batteries(4 pcs) : 9 Ah
Back up time(Each additional battery provides 40 additional minutes with full load connected to the UPS) :

1 pcs/ctn - 20,20 kg

POOIP1503

Mistral 3KVA

Type1(Nominal Capacity) : 3000 (2700 W) VA
Type2(Online Double Conversion) : Type
Type3(200/ 208/ 220/ 230/ 240) : Input Voltage Vac
Type4(200/ 208/ 220/ 230/ 240) : Output Voltage Vac
Type5(45~65 HZ (auto-detection)) : Input Frequency Hz
Type6(50/ 60 Hz + 0.02 Hz) : Output Frequency Hz
Type7(Yes) : Surge Protection
Type8(MTBF (Mean Time Between Transfer)) : 0 Ms
Type9(IEC 320 C13-10A x 6 & C19 x 16A x 1 (personalized)) : Output Sockets
Type10(VRLA Maintenance Free Batteries (Valve Regulated Lead Acid Batteries)) : 5 Years
Type11(Noise level) : 50 at 1 meter dBA
Type12(Power Saving Mode & Eco friendly mode) : Environmental Compliance
Type14(Audible alarms for voltage fluctuations, frequency, current, overload and any types of fauly conditions. LED indicators - LCD display - Built-in MCB resettable switch) : Features
Type15(Heavy Duty 3-pin BS1363 13A input socket) : Main Plug (input)
Type 16(Made: Ipower / Model: Mistral 3 KVA Convertible UPS/ EU Standard) : Made/Model
Technical specifications : Refer to attached Annex_01
Safety and EMC certifications(IEC 62040-1-1, IEC 60950-1) :
ISO certification(EN 61000-2-2 EN 61000-4-2, Level 4 EN 61000-4-3, Level 3 EN 61000-4-4, Level 4 (also on signal ports) EN 6100-4-5, Level 4 Criteria A CE per IEC/EN 62040-2, Class B) :
EMC (Emissions)(IEC 62040-2:ed2:2005 / EN 62040-2:2006) :

1 pcs/ctn - 26,50 kg

SOCIP0703

Cabine batteries additionnelle pour Mistral 3 KVA incluant 12 batteries 12V9Ah

Dimensions(LxHxP) : 440x86.5x696 mm
Batteries(12 pcs) : 9 Ah

1 pcs/ctn - 44,20 kg

Battery Cabinet Mistral 6K including 20×12V9AH batteries

SOCIP0705

Cabine pour Mistral 6 et 10 KVA (avec 20 pcs de 12V9Ah) max 4 pieces en parallele

Type 1(Optional voltage ±96/ ±108/ ±120) : Battery Voltage VDC
Type 2(6-8 hours (to 90% full capacity)) : Typical recharge time
Type 3(Long run unit depends on the capacity of external batteries, extimated remaining time displayed on the LCD) : Backup time
Type 4(Maximum current 10A, charge current can be set according to battery capacity installed) : Charge current
Type 5(Maximum discharge current) : 129A (5Sc)
Type 6(Internal resistance) : Approx 19 mΩ
Type 7(720(D) X 443(W) X 131(H)) : Dimension mm
Type 8(62) : Net weight Kg
Back-up : Refer to attached table for battery calculation
Battery quantities per cabinet(2 hours of back-up time with 20 units of 12V9Ah batteries at 800(W) of load) : 12V9Ah

1 pcs/ctn - 76,00 kg

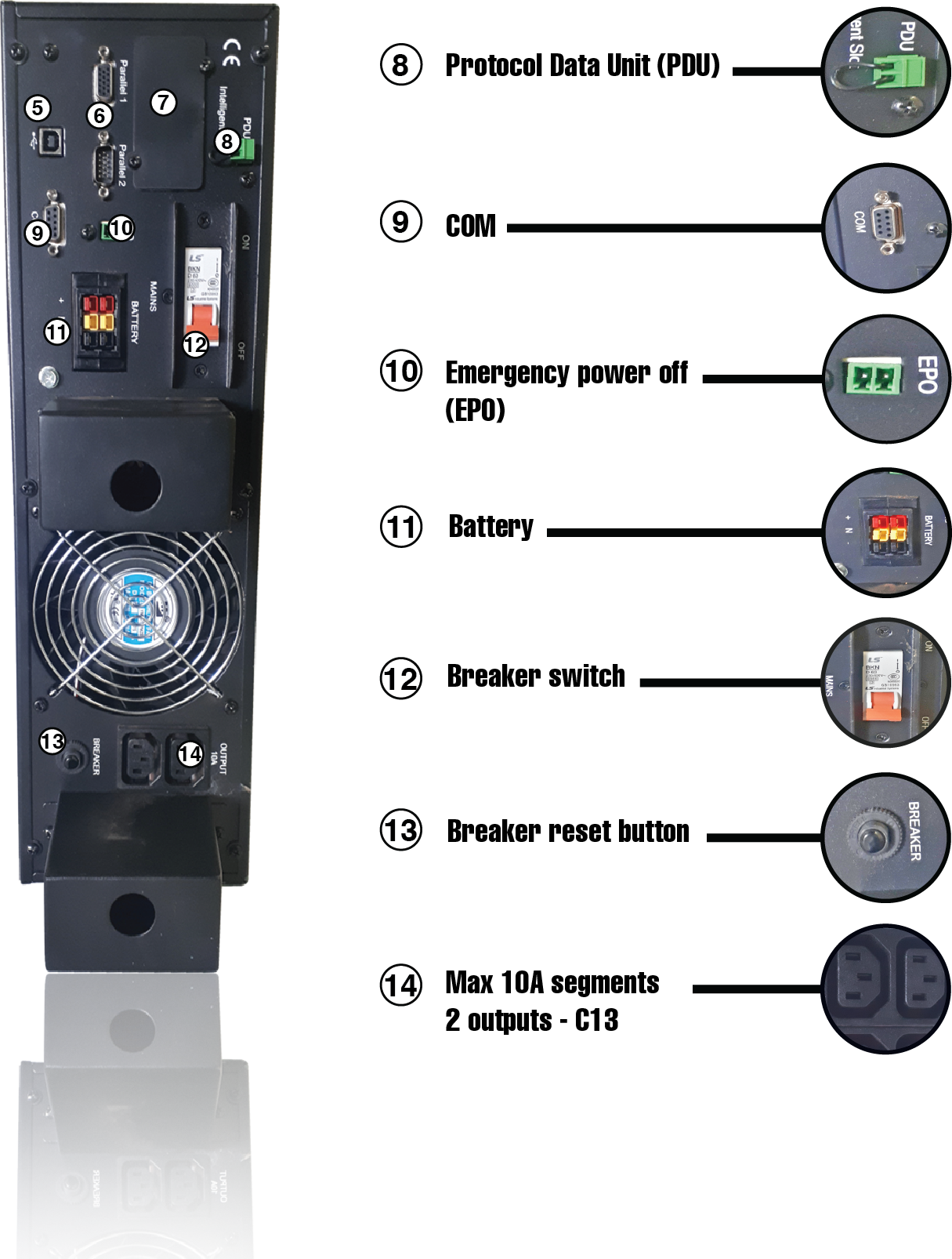

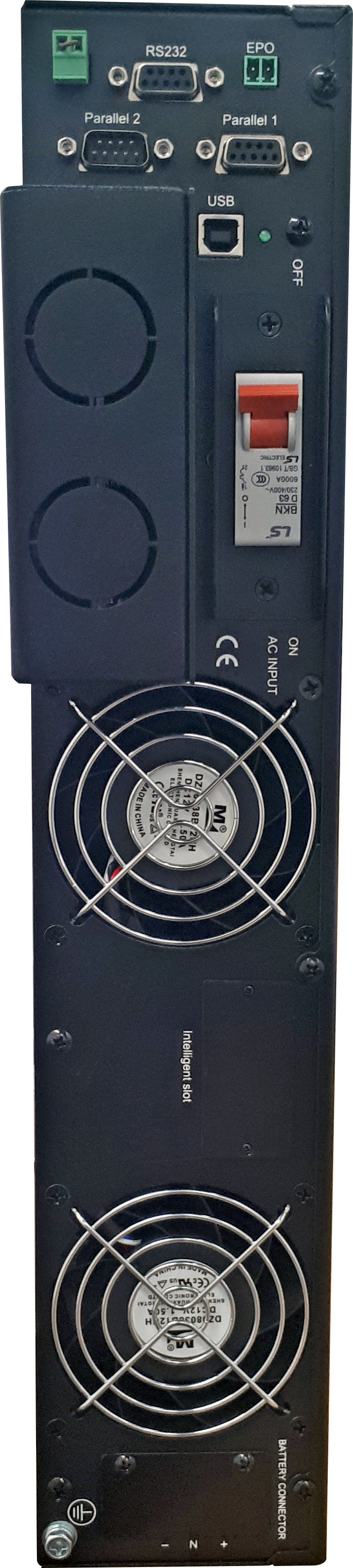

POOIP2401

Mistral II - 6 KVA MM - 5.4KW - redondance inclue - sans cabine sans batteries

1 pcs/ctn - 18,00 kg

POOIP2402

Mistral II - 10 KVA MM - 9KW - redondance inclue - sans cabine sans batteries

1 pcs/ctn - 20,30 kg

DESCRIPTION	MISTRAL 1 KVA	MISTRAL 2 KVA	MISTRAL 3 KVA	MISTRAL 6 KVA	MISTRAL 10 KVA
Capacity	900(W)	1800(W)	2700(W)	5400(W)	9000(W)
INPUT
Input voltage	220/ 230/ 240 Vac ( P+N+T)
Operating input voltage	120 – 276 Vac
Operating frequency range	45 – 55 Hz/ 54 – 66 Hz ± 0.5 Hz
Input power factor	≥ 0.98			≥ 0.99
Bypass voltage range	Max voltage.: +15% (optional +15%, +10%, +25%) Min voltage.: -45% (optional -15%, -20%, -30%) Protected frequency range: ±10%			220V ± 25% (optional +10%, +15%, +20% ) 230: +20% (optional +10%, +15%) 240: +15% (optional +10%) Min voltage: -45% (optional -20%, -30%)
Bypass frequency range	± 10%
Total Harmonic Distortion (THD)	≤ 3% (Linear mode) ≤5% (Non linear mode)			≤ 3% (100% Linear mode)
Generator input	Supported
OUTPUT
Output voltage	220/ 230/ 240 Vac (Adjustable)
Power factor	0.9
Voltage regulation	±2%
Frequency (Online mode)	50 or 60Hz			±1%/ ±2%/ ±4%/ ±5%/ ±10% Rated frequency (optional)
Frequency (Battery mode)	≤5% (Non linear mode)			50/ 60 (±0.1) Hz
Crest factor	3:1
Total Harmonic Distortion (THD)	≤ 2% (Linear mode)/ ≤ 5% (Non linear mode)
Wave form	Pure Sinewave
BATTERY
Battery voltage	Optional voltage (±96/ ±108/ 120 VDC)
Typical recharge time	6-8 hours ( 90% of full capacity)
Backup time	Long run unit depends on the capacity of external batteries. Estimated remaining time displayed on front LCD
Charge current	Max current: 10A, charge current can be set according to battery capacity installed
SYSTEM FEATURES
Transfer time	Utility to battery: 0ms – Utility to bypass: 0ms
Overload (Linear mode)	Load (≤110% last 60min/ ≤125% last 10min/ ≤150% last 1sec/ >150% turn back to bypass mode
Overload (Battery mode)	10A input breaker	15A input breaker	20A input breaker	40A input breaker	60A input breaker
Short circuit	Hold whole system
Overheat	Line mode: switch to bypass – Backup mode: switch down the UPS immediately
Low battery voltage	Alarm and switch OFF
Self diagnostic	Upon power ON and software control
Battery	Advanced (smart) battery management
Noise suppression	Complies with EN62040-2
Audible & visual alarms	Line failure, battery low, Overload, system fault
Status Led & LCD display	Line mode, backup mode, ECO mode, Bypass mode, Battery low, Battery bad, Overload & UPS fault
Reading on the LCD display	Input voltage, Input frequency, Output voltage, Output frequency, Load percentage,Battery voltage, Inner temperature & Remaining battery back-up time
Communication interface	USB, RS232, Parallel port, SNMP card, Relay card (optional)
ENVIRONMENT
Operating temperature	0 - 4 0 °C
Storage temperature	-25 °C – 55 °C
Humidity range	0 – 95% (non condensing)
Altitude	<1500m
Noise level	<55dB
PHYSICAL
Dimensions (l x h x p) mm	440x86.5x430		440x86.5x696	443 x 131 x 580 (3U)
Weight (Kg)	12		32	56	62
STANDARDS
Security	IEC/ EN62040 – 1 IEC/ EN60950 – 1
EMC	IEC/EN62040-2,IEC6100-4-2,IEC6100-4-3,IEC6100-4-4,IEC6100-4-5, IEC6100-4-6,IEC6100-4-8
